₹5,650 including GST
Add your GSTIN at checkout to get a GST invoice. Input tax credit may be available to registered businesses, subject to eligibility.

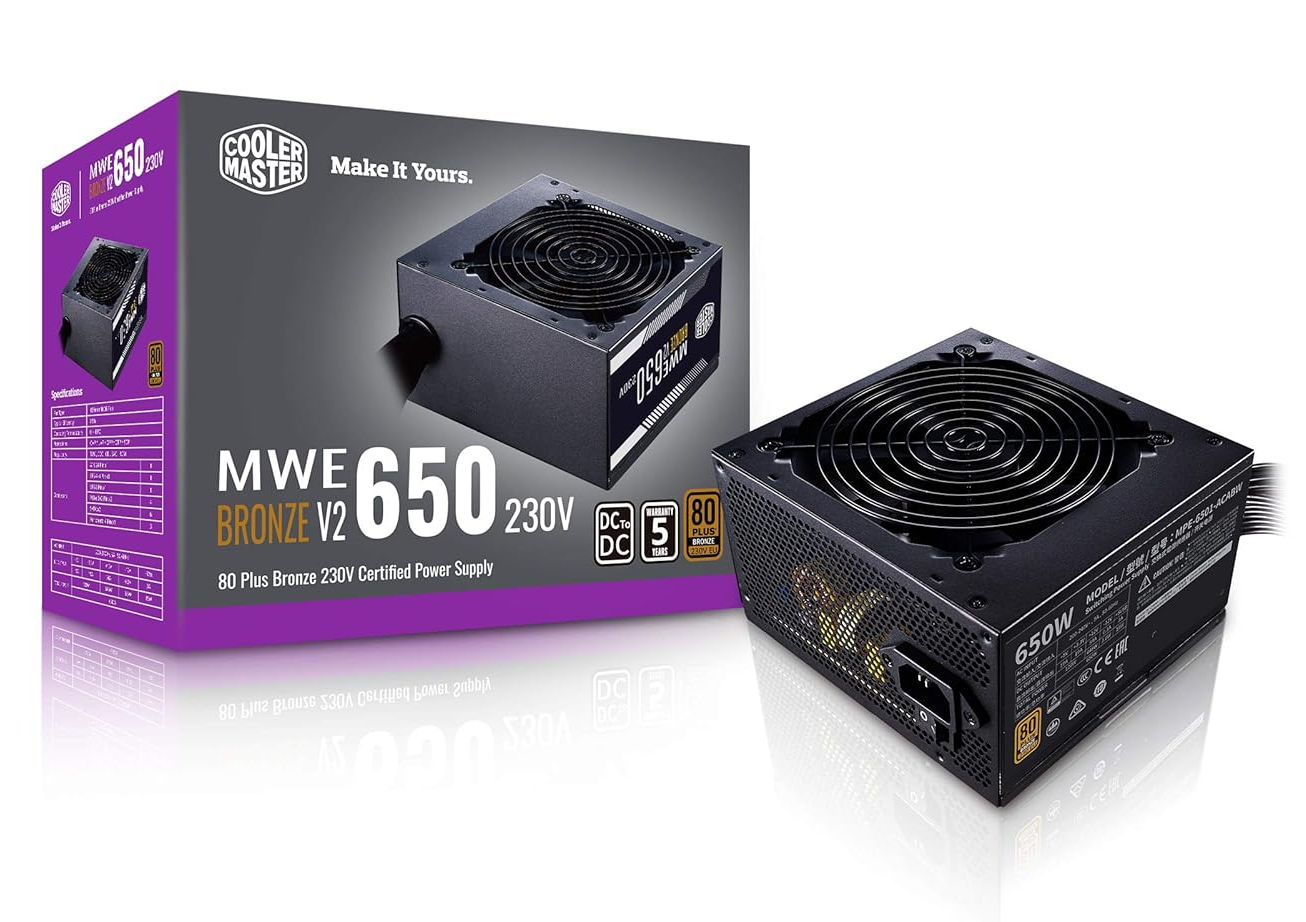

The Cooler Master MWE 650 Bronze V2 (model MPE-6501-ACAAB) is a 650 W non-modular ATX power supply with 80 PLUS Bronze certification and a DC-to-DC circuit design. It uses a 120 mm HDB fan and flat black cables, and provides four PCIe 6+2-pin, eight SATA and four peripheral 4-pin connectors. It follows the ATX 12V V2.52 standard and accepts 100-240 V input. Key specifications Specification Detail Model MPE-6501-ACAAB Output 650 W 80 PLUS rating 80 PLUS Bronze; efficiency 85% typically ATX version ATX 12V V2.52 PFC Active PFC Input 100-240 V, 10-5 A, 50-60 Hz Form factor ATX, non-modular Dimensions (L x W x H) 140 x 150 x 86 mm Fan 120 mm, HDB (hydro dynamic) bearing, 2400 RPM Noise level 11.06 dBA at 20% load, 22.3 dBA at 50%, 41.3 dBA at 100% Hold-up time More than 18 ms at 100% full load at 230 Vac MTBF More than 100,000 hours Operating temperature 40 degrees C Protections UVP / OVP / OPP / OTP / SCP ATX 24-pin 1 EPS 4+4-pin 1 EPS 8-pin 1 PCIe 6+2-pin 4 SATA 8 Peripheral 4-pin 4 Cables Flat, black cables; DC-to-DC circuit design Compatibility ATX form factor, 140 x 150 x 86 mm, non-modular. ATX 12V V2.52; one 24-pin ATX, one EPS 4+4-pin and one EPS 8-pin connector. Graphics card power: four PCIe 6+2-pin connectors. Storage and peripherals: eight SATA and four peripheral 4-pin connectors. Good to know Cooler Master lists several MWE 650 Bronze V2 models. The standard model is MPE-6501-ACAAB; the Full Range variant is listed separately as MPE-6501-ACAAW. Cooler Master quotes the 85% efficiency figure as typical, and the hold-up time figure at 230 Vac. Cooler Master's page does not list an India-specific part number.
Genuine Product
Brand-sealed, 100% authentic
GST Invoice
Tax invoice included with every order
7-Day Returns
Hassle-free return & replacement
Secure Payment
256-bit SSL encrypted checkout
80 Plus Bronze is an efficiency certification, not a measure of how many watts a PC needs. On the 115V test a Bronze power supply must reach at least 82% efficiency at 20% load, 85% at 50% and 82% at 100%; the 230V EU test requires 85%, 88% and 85%. The listing does not state which test applies, and shows "85% @ Typical Load".
Cooler Master lists one ATX 24-pin, one EPS 4+4-pin and one EPS 8-pin connector, four PCIe 6+2-pin connectors, eight SATA connectors and four peripheral 4-pin connectors for the MWE 650 Bronze V2 (model MPE-6501-ACAAB). The unit is non-modular, so the cables are fixed and are flat, black cables.

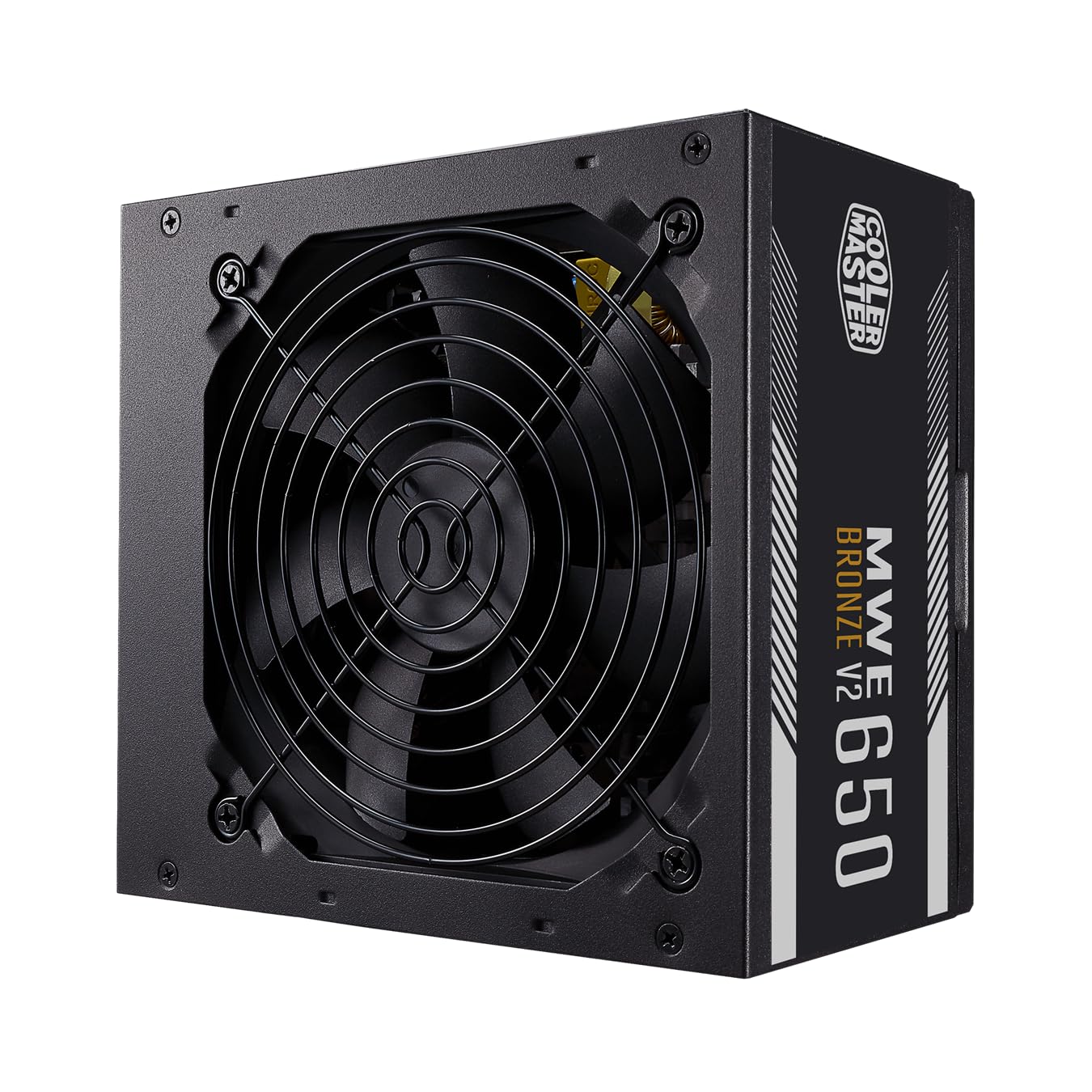

The Cooler Master MWE 650 Bronze V2 measures 140 x 150 x 86 mm (L x W x H) and is an ATX power supply. It uses a 120 mm fan with an HDB (hydro dynamic) bearing, rated at 2400 RPM. Cooler Master lists noise of 11.06 dBA at 20% load, 22.3 dBA at 50% load and 41.3 dBA at 100% load.
Cooler Master lists UVP, OVP, OPP, OTP and SCP protections for the MWE 650 Bronze V2, together with active PFC and ATX 12V V2.52 compliance. Input is 100-240 V at 50-60 Hz. Hold-up time is listed as more than 18 ms at 100% full load at 230 Vac, and MTBF as more than 100,000 hours.
