₹19,990 including GST
Add your GSTIN at checkout to get a GST invoice. Input tax credit may be available to registered businesses, subject to eligibility.

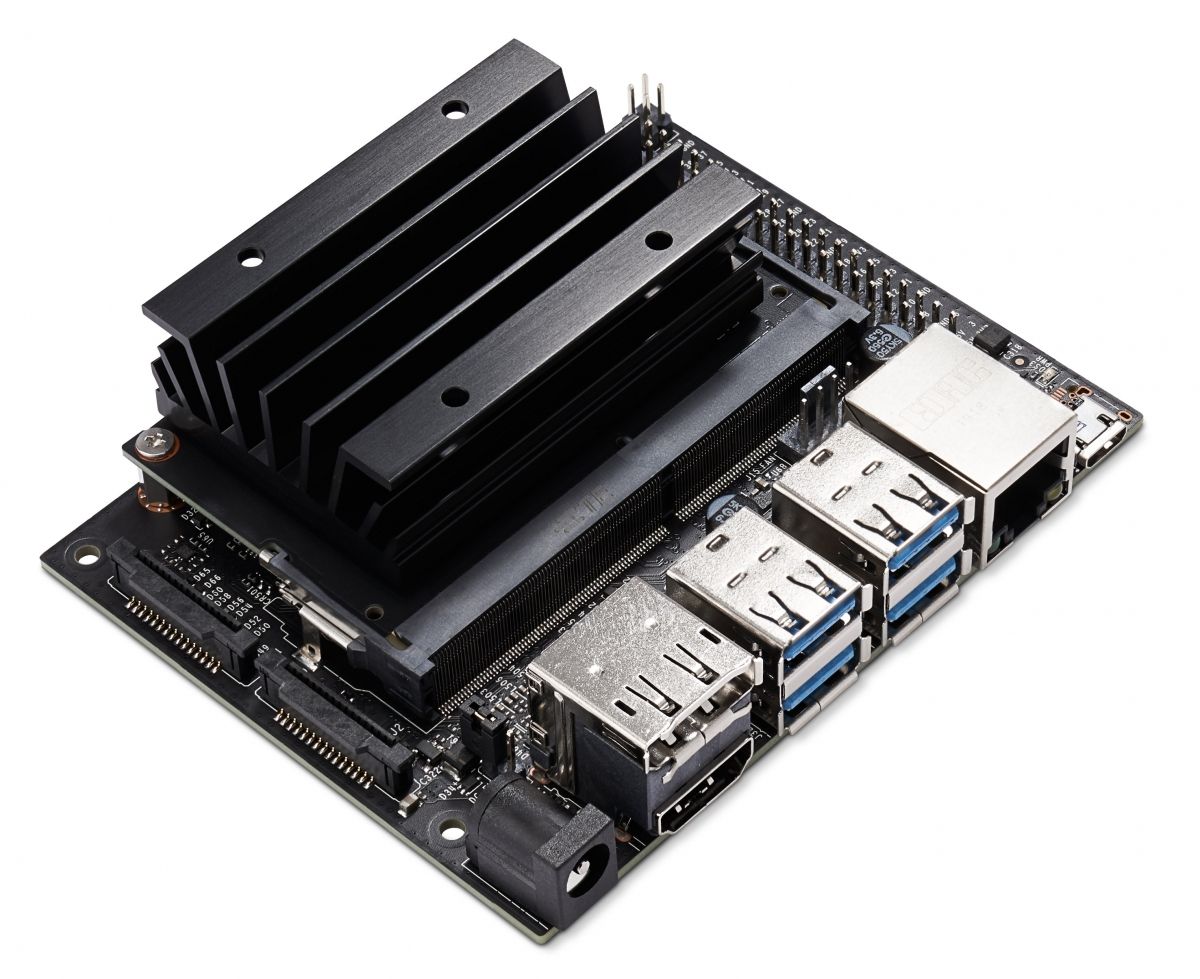

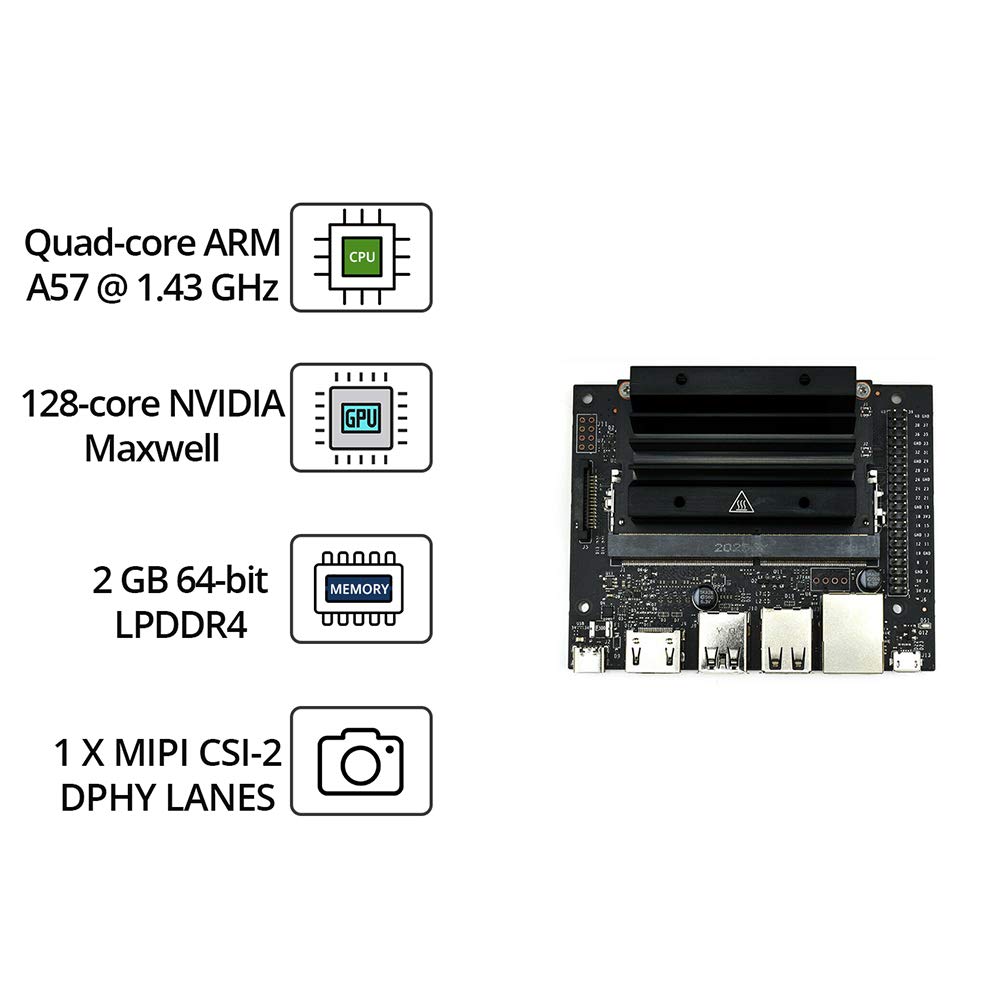

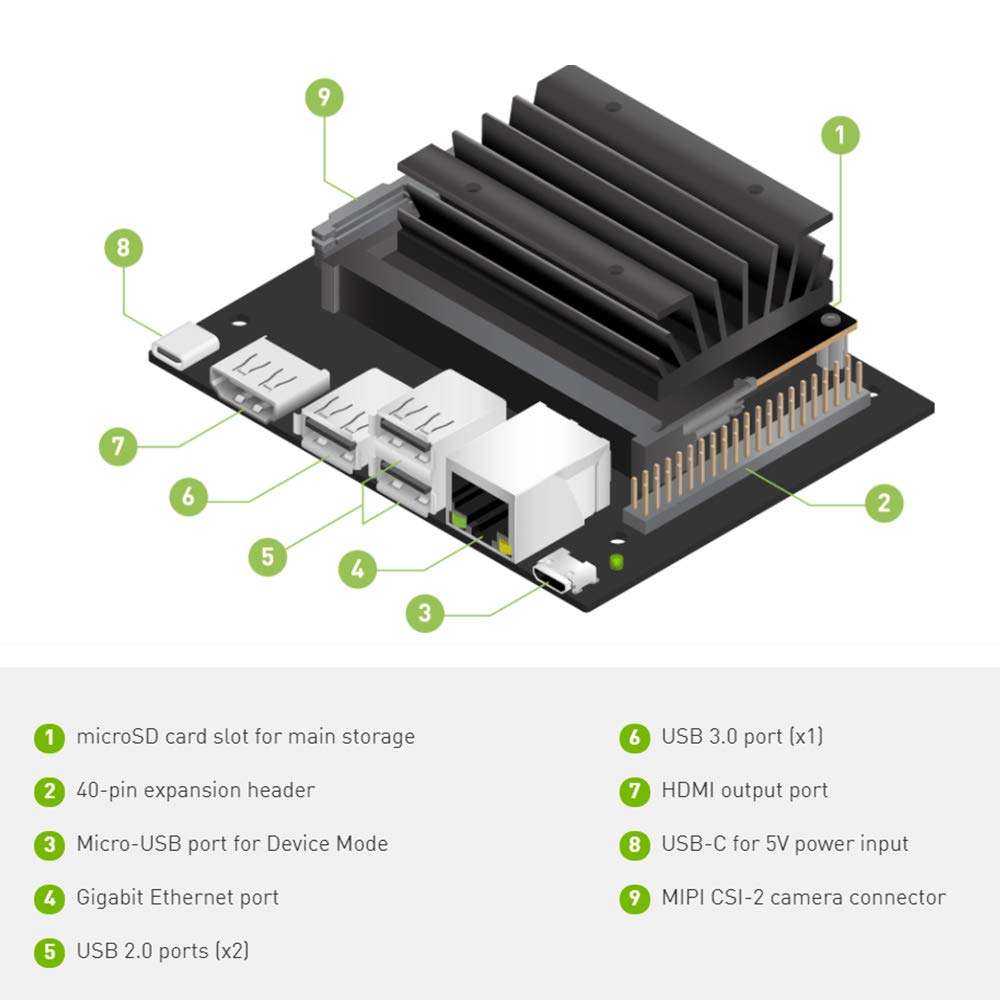

Enter the world of AI through this Jetson Nano Developer kit launched by NVIDIA, and enjoy the infinite joy that AI brings to you! Jetson Nano Kit is a small, powerful computer that enables all makers, learners, and developers to run AI frameworks and models. Insert a microSD card with a system image into the module to boot the device. With the built-in system on chip (SOC), it is able to run multiple neural networks, such as TensorFlow, PyTorch, Cafffe/Caffe2, Keras, and MXNet, which can realize image classification, object detection, segmentation, and speech processing so as to help you to build up the advanced robot and complicated AI system. FEATURES: ① MicroSD Card Slot ② 40pin GPIO Expansion Header ③ Micro-USB ④ Gigabit Ethernet ⑤ 4*USB3.0 ⑥ HDMI Output ⑦ DisplayPort Connector ⑧ Power Jack DC 5V ⑨ 2*MIPI CSI Camera Connector SPECIFICATIONS: GPU: 128-core NVIDIA Maxwell™ GPU CPU: Quad-core ARM® A57 CPU Memory: 4 GB 64-bit LPDDR4 Storage: 16GB eMMC 5.1 flash Micro-USB: 5V 2A Video Encoder: 4K @30(H.264/H.265) Video Decoder: 4K @60(H.264/H.265) Camera: 12 lanes (3×4 or 4×2) MIPI CSI-2 DPHY 1.1(1.5Gbps) Connectivity: Gigabit Ethernet Display: HDMI 2.0 or DP1.2 |eDP 1.4| DSI (1x2) UPHY: 1x1/2/4 PCIE, 1xUSB3.0, 3xUSB2.0 I/O: 1xSDIO/ 2xSPI /6xI2C /2xI2S /GPIO Dimension: 100 x 80 x 29 mm/3.94x3.15x1.14” DOCUMENTATION LINKS: Get Started With JETSO NANO JETSON NANO Learning JETSON NANO User Guide NVIDIA Jetpack SDK JETSON NANO WIKI Developer Blog FAQ After-Sale Service Process Abundant Interface Rich peripheral interfaces enable you to connect various sensors to establish AI-based applications. High Performance Jetson Nano adopts 64-bits ARM CPU,128 core NVIDIA GPU and 4 GB LPDDR4 storage and provides 0.5T FLOPS algorithms performance. It features high-efficiency, low power consumption, small size, and low cost. Easy-to-use SDK Jetson Nano is also supported by NVIDIA Jetpack, which includes a board support package(BSP), Linux OS, NVIDIA CUSA ®, cuDNN, and TensorRT™ software libraries for deep learning, computer vision, GPU computing, multimedia processing, and much more. The same JetPack SDK is used across the entire NVIDIA Jetson ™ family of products and is fully compatible with NVIDIA’s world-leading AI platform for training and deploying AI software. This proven software stack reduces complexity and overall effort for developers. Update Instruction A02 vs B01: 1. The old version A02 has only one camera interface J13, and the new version B01 has one additional camera interface J49; 2. J40 and J44 in the old version A02 are combined as J50 in the new version B01. The interface has been moved and changed from vertical to horizontal one. 3. The Jetson Nano expansion kit is composed of core board and a baseplate. The core board has no eMMC so the system should be burned into the TF card when installing the system. The modules NVIDIA supplies in bulk come with eMMC, but no TF card slot. The A02 expansion board is incompatible with Jetson Nano Module with eMMC, while the B01 is compatible with not only Jetson Nano Module with eMMC but also Jetson Xavier NX Module. SPECIFICATIONS: Brand NVIDIA Model Jetson Nano Developer Kit Model Number 945-13450-0000-100 Supply Voltage 5V 4A GPU 128-core Maxwell CPU Quad-core ARM A57 @ 1.43 GHz Memory 4 GB 64-bit LPDDR4 25.6 GB/s Video Encoder 4K @ 30 4x 1080p @ 30 9x 720p @ 30 (H.264) Video Decoder 4K @ 60 2x 4K @ 30 8x 1080p @ 30 18x 720p @ 30 (H.264/H.265) Camera 2x MIPI CSI-2 DPHY lanes Connectivity Gigabit Ethernet, M.2 Key E Display HDMI 2.0 and eDP 1.4 Dimensions (WxHxD): 4x USB 3.0, USB 2.0 Micro-B Mechanical: 100 mm x 80 mm x 29 mm Warranty 1 Year Manufacturer's Warranty Country Of Origin China Manufacturer NVIDIA SINGAPORE PTE.LTD Manufacturer Address 18F, Goodman Texaco Centre, 126-140 Texaco Road, Tsuen Wan, N.T.HONG KONG SAR Importer Rashi Peripherals Pvt.Ltd. Rashi Complex A Building, Survey 186, Dongaripada, Poman, Vasai-E, Thane, Maharashtra - 401208. Net Qty 1 Note ***Features, Price and Specifications are subject to change without notice.
